ZLTECH 13 inch wheel motor with pneumatic tire for farm robot

Short Description:

At present, Zhongling Technology can provide 4inch to 16 inch wheel hub servo motors and drive systems, among which the 6.5inch to 16inch 500W-800W high-power motor with a load of 200kg-500kg is particularly suitable for agricultural robots. With the advantages of high torque, stable operation at low speed, no step loss, high resolution, strong anti-interference ability, support for long-distance signal transmission, and high reliability, Zhongling Technology hub servo motor and drive system have occupied a place in the agricultural robot industry. Zhongling Technology will develop and apply new technologies with the concept of openness and innovation, and promote the research and development of intelligent agricultural robot motion chassis that can adapt to various environments.

Send email to us

Product Detail

Product Tags

Features

1. The integrated structure of encoder, motor and wheel is more conducive to improving accuracy and reliability.
2. the installation mode is simple, the installation is convenient and the precision is high.
3. Outstanding low-speed characteristics and good stability.
4. Low noise, compared with the traditional scheme of brush or brushless motor+reducer, the mute effect is good.
5. Built-in encoder, simple wiring, strong earthquake resistance.
6. Built-in temperature sensor can monitor the motor temperature in real time, providing various protection mechanisms.
7. The life of the hub motor can be used continuously for 8000h, and the tire can run 200000 km.

FAQ

Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing
Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
Q: Can I get a sample to test?
A: Yes, sure, pls understand our sample will be charged.
Q: What is the MOQ?
A: 1pcs is available.
Q: What are your terms of price?
A: Here are our FOB price. All the prices in the lists are subject to our final confirmation. In General. our prices are given on a EXW basis.

Parameters

Item	ZLLG13ASM800 V2.0
Size	13.0"
Tire	Pneumatic Rubber
Wheel Diameter(mm)	337.4
Shaft	Single
Rated voltage (VDC)	48
Rated power (W)	800
Rated torque (N.m)	17
Peak torque (N.m)	51
Rated Phase current (A)	7.5
Peak current (A)	22
Rated speed (RPM)	150
Max speed (RPM)	180
Poles No (Pair)	20
Encoder	4096 Magnetic
Protection level	IP65
Lead wire (mm)	600±50
Insulation voltage resistance (V/min)	AC1000V
Insulation voltage(V)	DC500V, >20MΩ
Ambient temperature (°C)	-20~+40
Ambient humidity (%)	20~80
Weight(KG)	9.55
Load(KG/2sets)	200

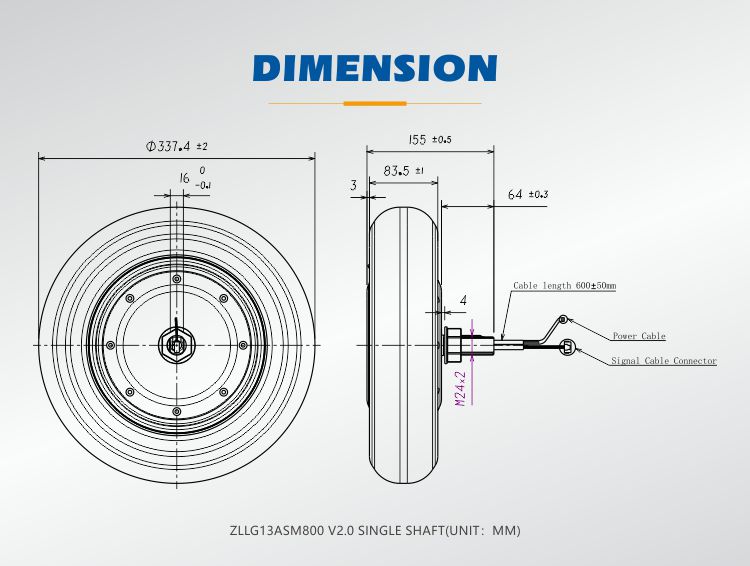

Dimension

ZLLG13ASM800 V2.0

Application

Brushless DC motors are widely used in electronic manufacturing, medical equipment, packaging equipment, logistics equipment, industrial robots, photovoltaic equipment and other automation fields.
