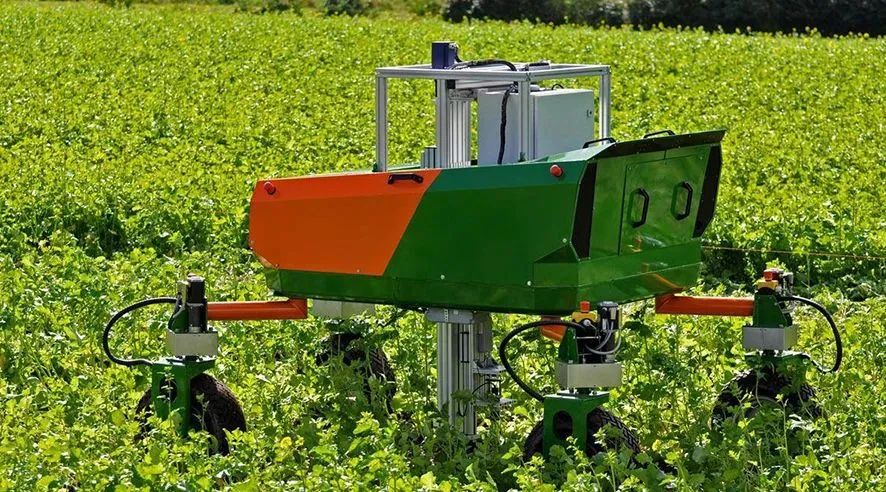

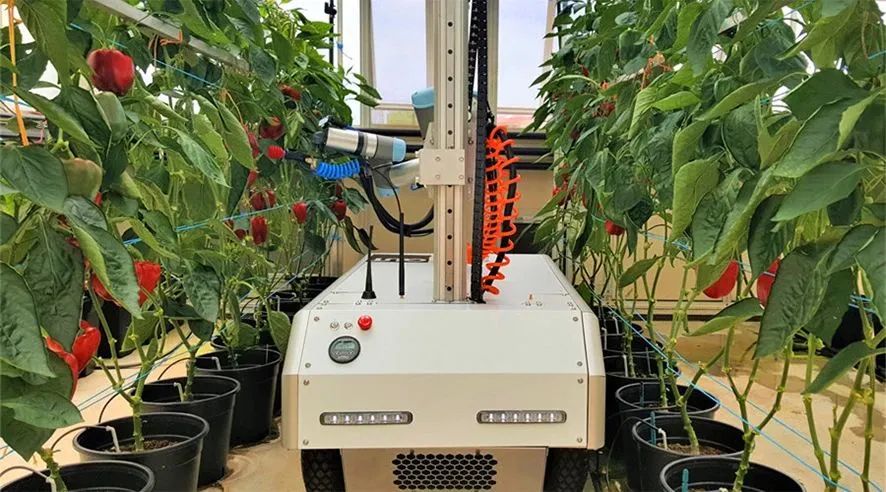

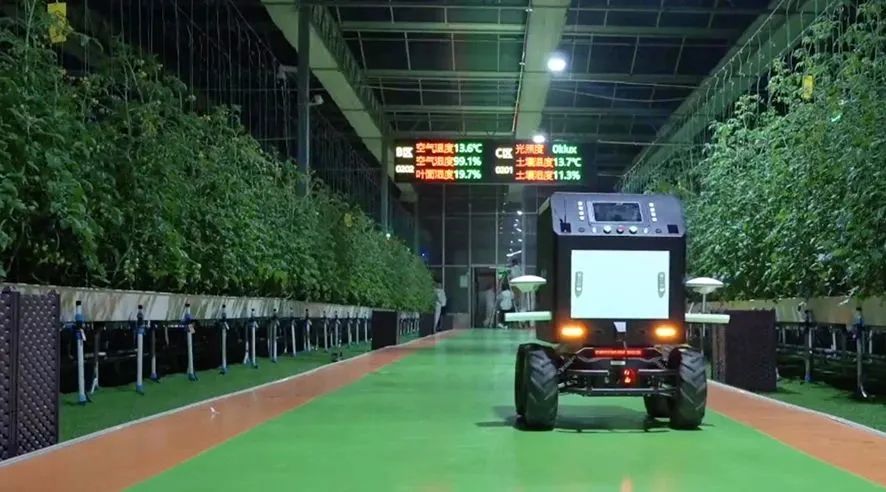

Agricultural robot is a special robot used in agricultural production and is a new type of multifunctional agricultural machinery. The emergence of agricultural robot is a result of the development of modern agricultural machinery and a product of the development of robot technology and automation technology. The emergence and application of agricultural robots have changed traditional agricultural labor methods and promoted the development of modern agriculture. Agricultural robot can generally be divided into: agricultural robot, fruit and vegetable robot, animal husbandry robot, and forest robot. So, how does agricultural robot choose the tires that are suitable for themselves?
Agricultural robot has low speed and heavy load, requiring tires to have high strength, high load-bearing capacity, wear resistance, good elasticity, and good adhesion to the road surface. Commonly used tires include pneumatic tire, solid core tire, and high elastic solid core tire.

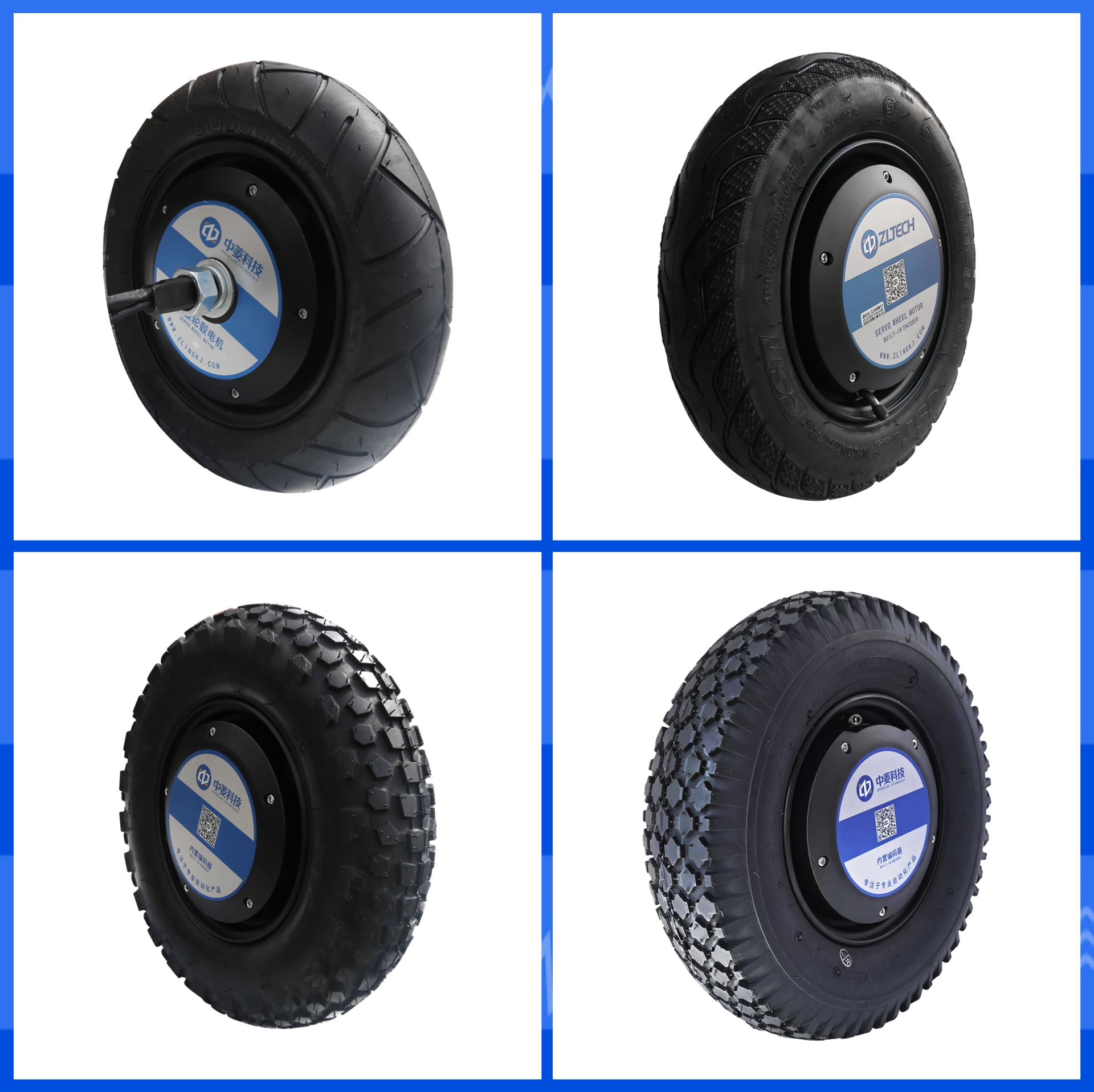

1. Inflatable tire. Pneumatic tire is currently the most widely used tires for various agricultural robto, which can alleviate and absorb the vibration and impact generated by uneven road surfaces. Most of the vibration and impact energy is absorbed by the compressed air inside the tire, while a small portion is absorbed by the tire’s fabric layer.
2. Solid core tire. The commonly referred to solid core tire is a hard rubber tire with little elasticity, which is a rubber ring with a certain thickness, and the outer surface is made into intersecting grooves to improve the adhesion between the tire and the road. The advantage of solid core tires is their large load-bearing capacity. When subjected to the same load, the diameter of solid core tires is smaller than that of inflatable inner tires, with a simple structure, easy maintenance, and no danger of puncturing. But it has low elasticity, poor vibration absorption ability, high power consumption, easy rubber detachment, and easy damage to the road surface.
3. The widely used solid core tire nowadays is high elastic solid core tires with good elasticity and dynamic characteristics. This type of tire is not a simple hard rubber ring, its outer layer is a wear-resistant rubber, and the inner layer of the tire is a thick material with good elasticity, which can better absorb vehicle vibration and impact. At present, there are several tire factories in China that produce this type of high elasticity tire, but the specifications are relatively small. This type of high elasticity solid core tire has the same advantages as traditional solid core tires, but overcomes the original drawbacks. Not only does it have traction characteristics that are very similar to pneumatic tires, but it also has slightly better driving smoothness. In developed countries such as the United States, mass production and application of this type of tire began in the 1980s, with significant economic benefits. Although the speed of agricultural machinery is relatively low, due to the high load, tires that meet the maximum static load requirements should be selected as much as possible.
Customers need to choose tires that are suitable for them based on their actual situation, but without exception, customers usually require tires with deeper tread patterns to increase friction and grip.
With the continuous popularization of agricultural robots, wheel hub motors will be widely used in more and more industries. As agricultural robots continue to become more popular, hub motors will be widely used in more and more industries. Shenzhen Zlingkj Technology as a high-tech company integrating R&D, production and sales, has a strong R&D team and believes that it will make more breakthroughs in the future.
Post time: Nov-20-2023
