The ability of robot wheel motor to climb obstacles mainly involves the balance of mechanics and dynamics, so it needs to be considered from multiple aspects such as motor performance, mechanical structure, and environmental conditions.
1. Motor torque: The output torque of the motor directly affects whether it can generate enough force to climb obstacles. But the difference between peak torque and continuous torque needs to be considered.
2. Wheel diameter and tire design: The size of the wheel determines the contact area, and larger wheel diameters may be easier to cross obstacles. At the same time, the material and pattern of the tire affect friction, which is related to traction.
3. Robot weight and center of gravity position: Weight distribution affects torque balance. A center of gravity that is too high may cause tipping, while one that is too low may affect the lifting force when crossing obstacles.
4. Obstacle height and shape: The physical characteristics of obstacles directly affect the required lifting force and driving force.
5. Friction coefficient: The friction coefficient between the ground and the tires determines the maximum traction force to prevent slipping.
6. Control system response: Whether the control algorithm of the motor can adjust the output in a timely manner to adapt to obstacles, such as torque control or speed regulation.
7. Structural strength and materials: Whether mechanical components can withstand high loads during obstacle crossing, avoiding deformation or damage.
8. Power allocation: In the case of multi wheel drive, how power is allocated will affect the grip and overall obstacle crossing ability of each wheel.
9. Environmental factors: such as ground humidity, slope, etc., may indirectly affect friction and robot stability.
Below are some ways to optimize the ability to climb obstacles
1. Improve motor performance:

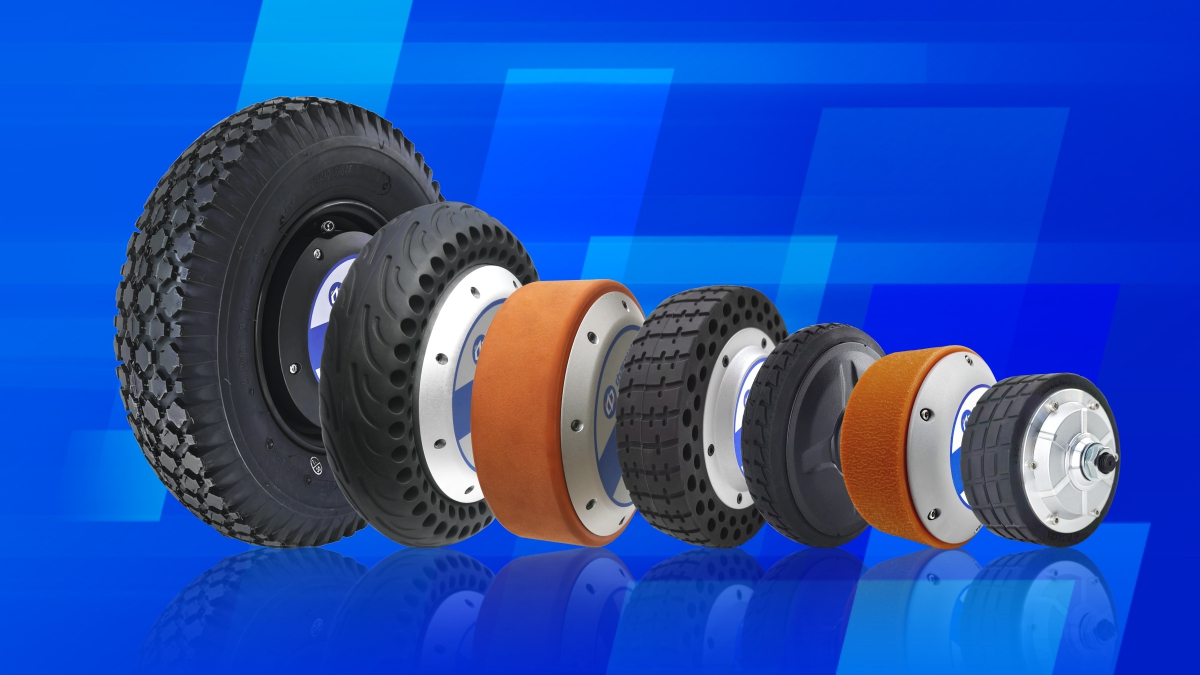

Increase power and torque: Choose wheel hub motors with higher power and torque to provide stronger driving force.
Optimize motor control algorithm: Use advanced control algorithms (such as PID control) to improve the response speed and accuracy of the motor.
2. Optimize wheel design:
Increase wheel diameter: Using larger wheels can help robots cross obstacles more easily.
Choose the appropriate tire material: Use materials with good grip and elasticity to improve the adaptability and friction of the wheels.
3. Improve the suspension system:
Design an effective suspension system: using independent suspension or spring system to improve the stability and comfort of the robot when passing through obstacles.
Increase suspension travel: Increasing the suspension travel can help robots better adapt to uneven ground.
4. Adjust the center of gravity:
Lower the center of gravity: By reasonably arranging internal components, the center of gravity of the robot can be lowered to improve stability and reduce the risk of tipping over.
Optimize weight distribution: Ensure even weight distribution of the robot and avoid center of gravity deviation
5. Improve the control system:
Enhance sensor feedback: Use higher precision sensors (such as LiDAR, ultrasonic sensors, etc.) to monitor obstacles in real time and adjust driving strategies.
Implement intelligent path planning: optimize path planning through algorithms, select the best route to avoid high obstacles.
6. Test and Debugg:
Conduct multiple tests: Test on different types of terrain and obstacles, collect data and analyze it to continuously optimize the design.
Adjust parameters: Based on the test results, adjust the motor parameters, wheel design, and control strategy to achieve optimal results.
By comprehensively considering the above factors and making corresponding improvements, the ability of the robot wheel motor to climb obstacles can be effectively improved, enhancing its adaptability and flexibility in complex environments. Shenzhen Zhongling Technology Co., Ltd will continue to be committed to the research and innovation of motors, and has professional technical knowledge in the field of overcoming obstacles. For more details, please refer to the official website of Zhongling Technology https://www.robotmotor.com/ .
